PyTorch &
Deep Learning

At its core, a neural network is a function approximator. You give it inputs, it produces outputs, and through training it learns to map inputs to the correct outputs. The magic is that it can learn any continuous function, given enough capacity.

The simplest unit is a single neuron (also called a perceptron). It takes some inputs, multiplies each by a weight, adds a bias, and passes the result through an activation function. That's it. Everything else in deep learning is just clever arrangements of this basic operation.

Play with the sliders above. Notice how changing the weights changes which inputs matter more. The bias shifts the decision boundary. And the activation function shapes the output range. A neural network is just layers of these neurons, where each layer's outputs become the next layer's inputs.

In PyTorch, you'd write a single neuron like this:

1import torch
2import torch.nn as nn
3
4# A single neuron: 2 inputs → 1 output
5neuron = nn.Linear(in_features=2, out_features=1)
6
7# Input tensor
8x = torch.tensor([1.0, 0.5])
9
10# Forward pass: weight · input + bias
11output = torch.relu(neuron(x))
12print(output)  # tensor([0.3842])

Before we go further, we need to talk about tensors. If you've used NumPy arrays, you already know tensors — they're the same concept, but with GPU acceleration and automatic differentiation built in.

A tensor is simply an n-dimensional array of numbers. A scalar is a 0D tensor. A vector is 1D. A matrix is 2D. An image is typically a 3D tensor (channels × height × width). A batch of images is 4D. The shape tells you the size of each dimension.

Click through the tabs above to see how tensors grow in dimensionality. The key insight is that everything in deep learning is a tensor operation. Images, text, audio — they all get converted to tensors before the network sees them.

1import torch
2
3# Creating tensors
4scalar = torch.tensor(42)           # shape: ()
5vector = torch.tensor([1.0, 2.0, 3.0])  # shape: (3,)
6matrix = torch.randn(3, 4)          # shape: (3, 4)
7batch  = torch.randn(32, 3, 224, 224)  # batch of images
8
9# Key operations
10print(matrix.shape)    # torch.Size([3, 4])
11print(matrix.dtype)    # torch.float32
12print(matrix.device)   # cpu (or cuda:0)
13
14# Move to GPU (if available)
15if torch.cuda.is_available():
16    matrix = matrix.cuda()  # now on GPU!

Tensors: from scalars to multi-dimensional arrays

When data enters a neural network, it flows through each layer sequentially — this is the forward pass. Each layer transforms the data: multiplying by weights, adding biases, and applying activation functions. The output of one layer becomes the input to the next.

Think of it like an assembly line. Raw materials (input data) enter one end, and each station (layer) adds something. By the end, you have a finished product (prediction). The network starts with random weights, so its first predictions are garbage. That's okay — training will fix that.

Click "Forward Pass" above to watch data propagate through the network. Notice how each layer transforms the values. In PyTorch, the forward pass is just calling your model like a function:

1class SimpleNet(nn.Module):
2    def __init__(self):
3        super().__init__()
4        self.layer1 = nn.Linear(3, 4)    # 3 inputs → 4 hidden
5        self.layer2 = nn.Linear(4, 4)    # 4 → 4
6        self.layer3 = nn.Linear(4, 2)    # 4 → 2 outputs
7
8    def forward(self, x):
9        x = torch.relu(self.layer1(x))   # activate!
10        x = torch.relu(self.layer2(x))
11        x = self.layer3(x)               # no activation on output
12        return x
13
14model = SimpleNet()
15prediction = model(torch.randn(1, 3))  # forward pass!

Without activation functions, stacking layers would be pointless — a stack of linear transformations is just one big linear transformation. Activation functions introduce non-linearity, allowing the network to learn complex patterns.

The forward pass gives us a prediction. But how does the network improve? This is where the backward pass (backpropagation) comes in. The idea is beautifully simple:

1. Compute the loss — how wrong is our prediction?
2. Compute the gradient of the loss with respect to each weight
3. Update each weight in the direction that reduces the loss

The gradient tells us: "If I increase this weight by a tiny amount, how much does the loss change?" If the gradient is positive, we decrease the weight. If negative, we increase it. The learning rate controls how big each step is.

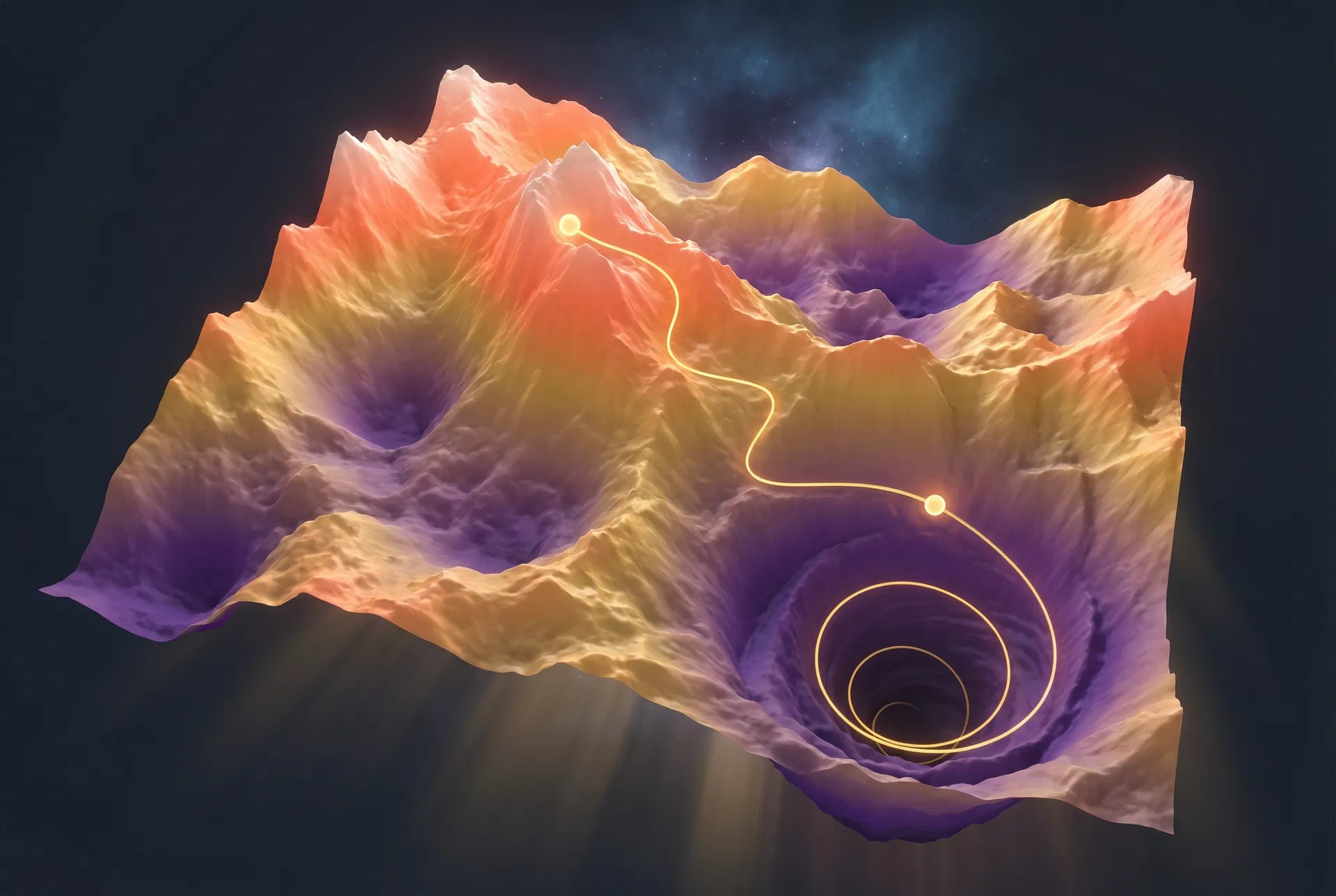

The loss landscape: gradient descent finds the valley

Try different learning rates in the demo above. Too small and it barely moves. Too large and it overshoots, bouncing around wildly. Finding the right learning rate is one of the most important hyperparameters in deep learning.

1# The magic of autograd: PyTorch tracks operations
2x = torch.tensor([2.0], requires_grad=True)
3y = x ** 2 + 3 * x + 1  # some function
4
5y.backward()  # compute gradients!
6print(x.grad)  # tensor([7.]) → dy/dx = 2x + 3 = 7
7
8# In practice, you never call backward() on individual ops.
9# You call it on the loss:
10loss = criterion(model(inputs), targets)
11loss.backward()     # computes ALL gradients
12optimizer.step()    # updates ALL weights
13optimizer.zero_grad()  # reset for next iteration

Now we put it all together. The training loop is the heartbeat of deep learning. Every iteration: push data forward, compute the loss, propagate gradients backward, and update the weights. Do this thousands (or millions) of times, and the network learns.

An epoch is one complete pass through the entire training dataset. You typically train for many epochs, watching the loss decrease over time. When the loss stops improving on a held-out validation set, you stop — that's your trained model.

Watch the loss curve in the demo above. It drops quickly at first (the "easy" patterns), then slows down as the model fine-tunes on harder examples. This is the typical training dynamic. Here's the complete training loop in PyTorch:

1import torch
2import torch.nn as nn
3from torch.utils.data import DataLoader
4
5# 1. Define model
6model = SimpleNet()
7
8# 2. Define loss function and optimizer
9criterion = nn.CrossEntropyLoss()
10optimizer = torch.optim.Adam(model.parameters(), lr=0.001)
11
12# 3. Training loop
13for epoch in range(20):
14    total_loss = 0
15    for batch_x, batch_y in DataLoader(dataset, batch_size=32):
16        # Forward pass
17        predictions = model(batch_x)
18        loss = criterion(predictions, batch_y)
19
20        # Backward pass
21        optimizer.zero_grad()  # clear old gradients
22        loss.backward()        # compute new gradients
23        optimizer.step()       # update weights
24
25        total_loss += loss.item()
26
27    print(f"Epoch {epoch}: loss = {total_loss:.4f}")

In PyTorch, every model is built from nn.Module. It's the base class that gives you parameter tracking, GPU movement, saving/loading, and the forward pass interface. You compose modules like LEGO blocks to build complex architectures.

1class ResidualBlock(nn.Module):
2    """A block with a skip connection."""
3    def __init__(self, dim):
4        super().__init__()
5        self.net = nn.Sequential(
6            nn.Linear(dim, dim),
7            nn.GELU(),
8            nn.Linear(dim, dim),
9            nn.Dropout(0.1),
10        )
11        self.norm = nn.LayerNorm(dim)
12
13    def forward(self, x):
14        # The residual connection: add input to output
15        return x + self.net(self.norm(x))
16
17
18class DeepModel(nn.Module):
19    def __init__(self, input_dim, hidden_dim, n_layers):
20        super().__init__()
21        self.embed = nn.Linear(input_dim, hidden_dim)
22        self.blocks = nn.ModuleList([
23            ResidualBlock(hidden_dim)
24            for _ in range(n_layers)
25        ])
26        self.head = nn.Linear(hidden_dim, 10)
27
28    def forward(self, x):
29        x = self.embed(x)
30        for block in self.blocks:
31            x = block(x)
32        return self.head(x)

Notice two patterns that appear everywhere in modern deep learning:

For years, Convolutional Neural Networks (CNNs) dominated computer vision and Recurrent Neural Networks (RNNs) dominated language. Then in 2017, the paper "Attention Is All You Need" introduced the Transformer, and everything changed.

The key innovation is self-attention: instead of processing tokens one by one (like RNNs) or looking at local patches (like CNNs), every token can directly attend to every other token. This allows the model to capture long-range dependencies in a single step.

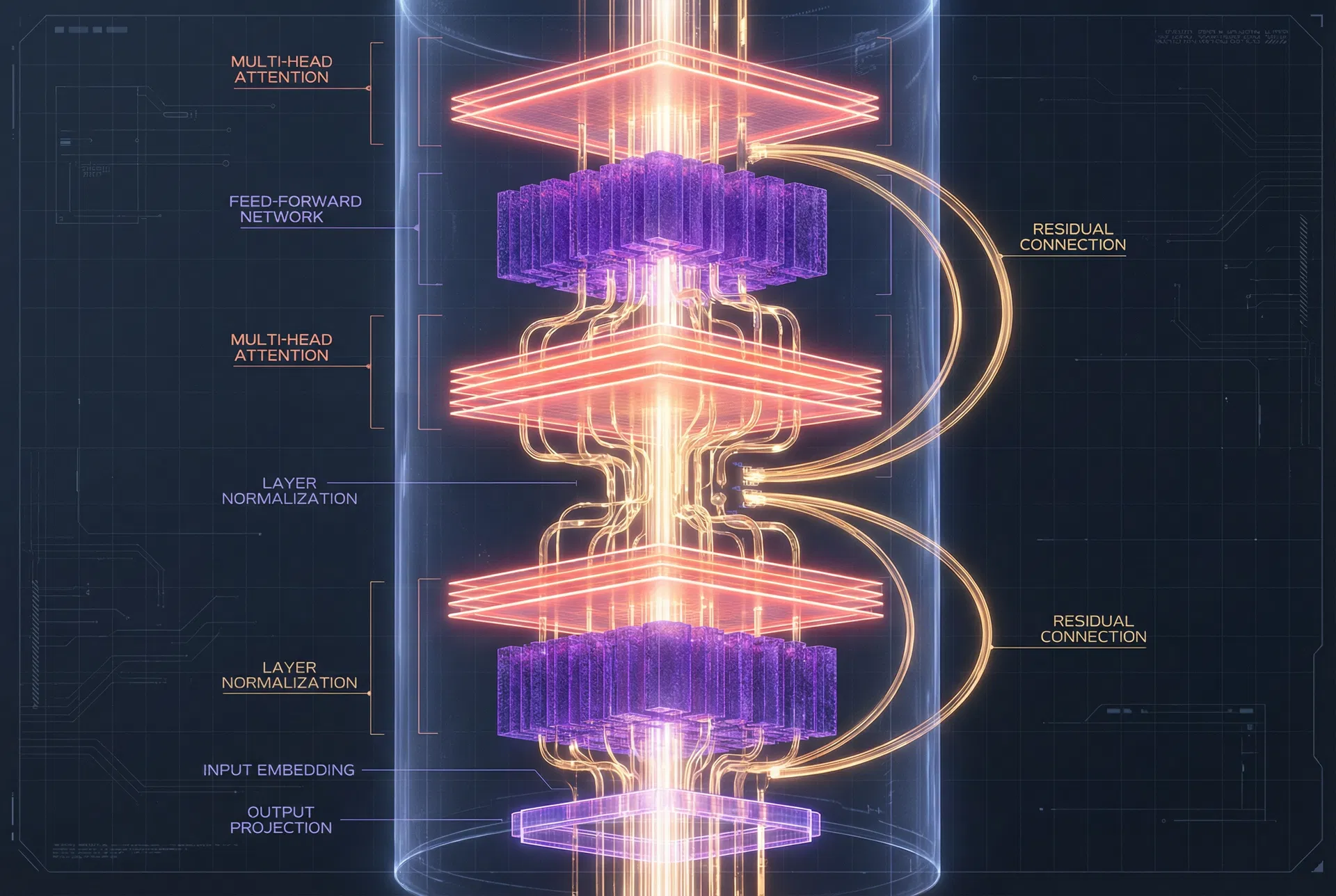

The Transformer: multi-head attention + feed-forward networks + residual connections

Hover over tokens in the demo above to see attention patterns. Notice how content words (nouns, verbs) tend to attend strongly to each other, while function words ("the", "on") have more diffuse attention. This is how the model builds contextual understanding.

1# Self-attention in ~10 lines of PyTorch
2def self_attention(x, d_k):
3    """x: (batch, seq_len, d_model)"""
4    Q = x @ W_q  # queries: what am I looking for?
5    K = x @ W_k  # keys: what do I contain?
6    V = x @ W_v  # values: what do I offer?
7
8    # Attention scores
9    scores = (Q @ K.transpose(-2, -1)) / (d_k ** 0.5)
10    weights = torch.softmax(scores, dim=-1)
11
12    # Weighted combination of values
13    return weights @ V

Multi-head attention runs multiple attention operations in parallel, each with different learned projections. This lets the model attend to different types of relationships simultaneously — one head might capture syntax, another semantics, another positional patterns.

An LLM is, at its core, a very large Transformer trained on a very large amount of text. The training objective is deceptively simple: predict the next token. Given "The cat sat on the", predict "mat". Do this across trillions of tokens from the internet, and something remarkable emerges — the model learns language, reasoning, code, and world knowledge.

But first, text needs to be converted to numbers. This is where tokenization comes in. Modern LLMs use Byte-Pair Encoding (BPE), which breaks text into subword units. Common words stay whole, rare words get split into pieces.

Type different text in the demo above to see how tokenization works. Notice how common words are single tokens, but unusual words get broken into subword pieces. This is why LLMs can handle any text — even made-up words — by decomposing them into known subwords.

Scaling Laws

One of the most important discoveries in modern AI is that model performance improves predictably with scale. More parameters, more data, more compute — each gives a reliable improvement following a power law. This is why the field has been racing to train ever-larger models.

From Pre-training to Alignment

Raw pre-trained LLMs are powerful but unruly — they'll happily generate toxic content or confidently state falsehoods. The solution is alignment: fine-tuning the model to be helpful, harmless, and honest. This typically involves:

Three modalities converging: vision, language, and action

The frontier of AI research is multimodal models — systems that can process and generate across multiple modalities: text, images, video, audio, and even physical actions. Vision-Language-Action (VLA) models represent the cutting edge, combining perception, reasoning, and embodied action in a single architecture.

The Architecture of Multimodality

The key insight is that different modalities can be tokenized into a shared representation space, then processed by the same Transformer backbone:

1# Simplified VLA architecture
2class VisionLanguageAction(nn.Module):
3    def __init__(self):
4        super().__init__()
5        # Vision encoder (frozen or fine-tuned)
6        self.vision_encoder = SigLIPEncoder()
7        self.vision_proj = nn.Linear(1152, 4096)
8
9        # Language model backbone
10        self.llm = LlamaForCausalLM.from_pretrained(
11            "meta-llama/Llama-3-8B"
12        )
13
14        # Action head
15        self.action_head = nn.Linear(4096, 7)  # 7-DOF robot
16
17    def forward(self, image, text_tokens):
18        # Encode image into tokens
19        vision_tokens = self.vision_proj(
20            self.vision_encoder(image)
21        )
22
23        # Concatenate with text tokens
24        text_embeds = self.llm.embed_tokens(text_tokens)
25        combined = torch.cat([vision_tokens, text_embeds], dim=1)
26
27        # Process through LLM
28        hidden = self.llm(inputs_embeds=combined)
29
30        # Predict actions from last hidden state
31        actions = self.action_head(hidden[:, -1, :])
32        return actions  # e.g., [dx, dy, dz, rx, ry, rz, grip]

Notable VLA Models

We've covered all the pieces. Now let's assemble them into a complete Transformer block — the fundamental unit that powers GPT, BERT, LLaMA, and every modern LLM. We'll build it step by step in PyTorch, and you'll see that it's surprisingly simple once you understand the components.

Each Transformer block contains: multi-head self-attention, layer normalization, a feed-forward network, and residual connections. Stack N of these blocks, add an embedding layer at the bottom and a prediction head at the top, and you have a complete Transformer.

Step through the builder above to see each component come together. By the end, you'll have a complete, working Transformer block. The remarkable thing is that this same architecture — with different sizes and training data — powers everything from GPT-4 to robot controllers.

Where to Go From Here

You now have a solid mental model of how deep learning works, from individual neurons to Transformers to LLMs and VLAs. Here are some paths forward:
